Part Number Description Status Capacity Architecture Voltage (V) Operating Frequency (Khz) WRITE SPEED (ms) Operating temperature Pin/Package
AT24C256 Mass production 256k 32K*8 1.7~5.5 1000 5 -40~85 DIP8/SOP8/TSSOP8/UDFN/SOT23-5/CSP


    The AT24C256C provides 262,144 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 32,768 words of 8 bits each. The device’s cascading feature allows up to eight devices to share a common 2wire bus. The device is optimized for use in many industrial and commercial applications where lowpower and lowvoltage operation are essential. The devices are available in spacesaving 8lead SOIC, 8lead TSSOP, 8pad UDFN and 8ball VFBGA packages. All packages operate from 1.7V to 5.5V.


    Low-Voltage and Standard-Voltage Operation:

    – VCC = 1.7V to 5.5V

    Internally Organized as 32,768 x 8 (256K)

    Industrial Temperature Range: -40°C to +85°C

    I2C-Compatible (2-Wire) Serial Interface:

    – 100 kHz Standard mode, 1.7V to 5.5V

    – 400 kHz Fast mode, 1.7V to 5.5V

    – 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

    Schmitt Trigger, Filtered Inputs for Noise Suppression

    Bidirectional Data Transfer Protocol

     Write‑Protect Pin for Full Array Hardware Data Protection

    Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)

    64-Byte Page Write Mode:

    – Partial page writes allowed

    Random and Sequential Read Modes

    Self‑Timed Write Cycle within 5 ms Maximum

    ESD Protection > 4,000V

    High Reliability:

    – Endurance: 1,000,000 write cycles

    – Data retention: 100 years

    Green Package Options (Lead-free/Halide-free/RoHS compliant)

    Die Sale Options: Wafer Form and Bumped Wafers

    8-Lead SOIC, 8-Lead TSSOP, 8-Pad UDFN and 8-Ball VFBGA

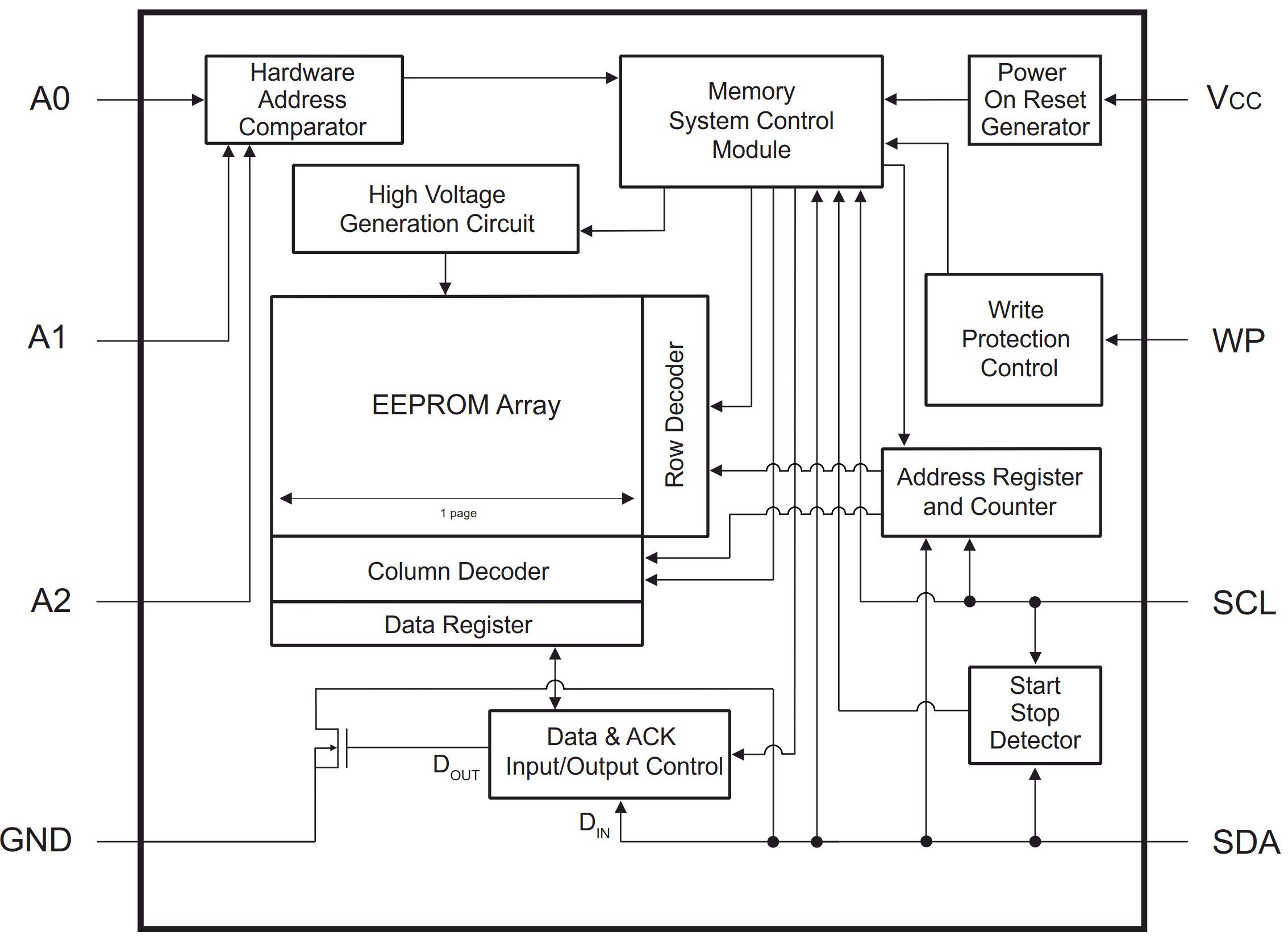

Block Diagram
