Features

    Low-Voltage Operation:

    – VCC = 1.8V to 5.5V

    – VCC = 2.7V to 5.5V

    User-Selectable Internal Organized as 2,048 x 8 (16K) or 1,024 x 16 (16K)

    lndustrial Temperature Range: -40°C to +85°C

    Three-Wire Serial Interface

    Sequential Read Operation

    Schmitt Trigger, Filtered Inputs for Noise Suppression

    2 MHz Clock Rate (5V)

    Self-Timed Write Cycle within 10 ms Maximum

    High Reliability:

    – Endurance: 1,000,000 write cycles

    – Data retention: 100 years

     Green Package Options (Lead-free/Halide-free/RoHS compliant)

Packages

    8-Lead SOIC, 8-Lead TSSOP, 8-Pad UDFN and 8-Lead PDIP

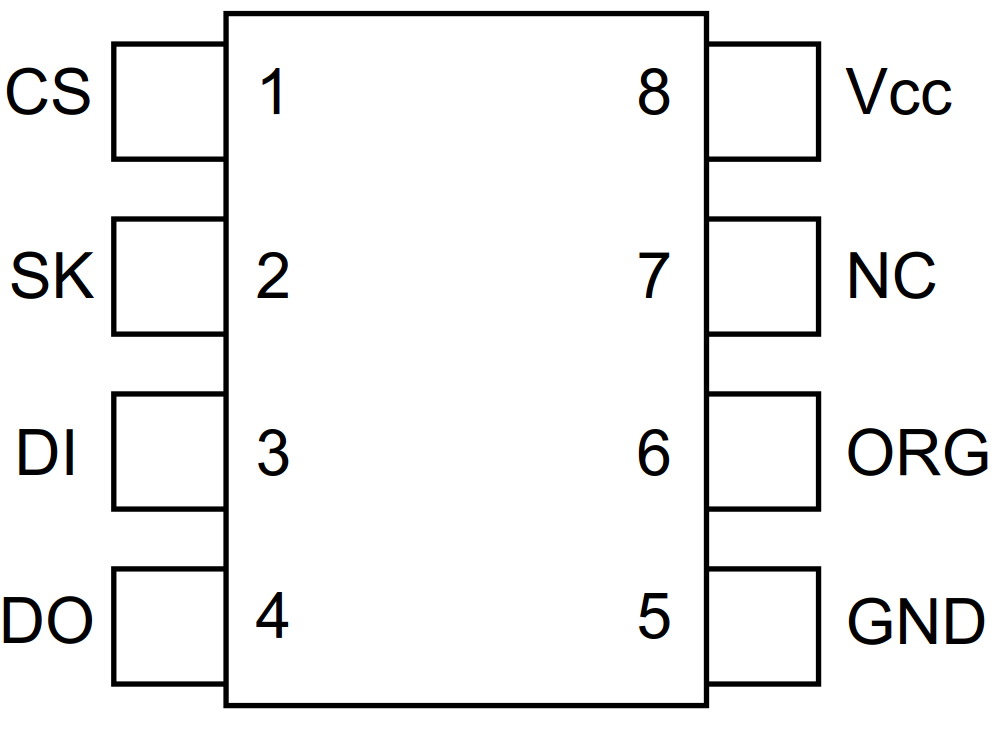

Package Types

               8-lead PDIP/SOIC/TSSOP
