Description

     The AT3483E, AT3485, AT3486, AT3488,AT3490E, and AT3491E are 3.3V, low-power trans- ceivers for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The AT3483 and AT3488 feature slew-rate-limited dri- vers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. The par- tially slew-rate-limited AT3486 transmits up to 2.5Mbps. The AT3485, AT3490E, and AT3491E transmit at up to 10Mbps.

    Drivers are short-circuit current limited and are protect- ed against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logichigh output if both inputs are open circuit.The AT3488, AT3490, and AT3491 feature full- duplex communication, while the AT3483, AT3485, and AT3486 are designed for half-duplex communi- cation.

Features

    Operate from a Single 3.3V Supply— No Charge Pump!

    Interoperable with +5V Logic

    8ns Max Skew (AT3485/AT3490E/AT3491E)

    Slew-Rate Limited for Errorless Data Transmission (AT3483/AT3488)

    2nA Low-Current Shutdown Mode (AT3483/AT3485/AT3486/AT3491E)

    -7V to +12V Common-Mode Input Voltage Range

    Allows up to 32 Transceivers on the Bus

    Full-Duplex and Half-Duplex Versions Available

    Industry Standard 75176 Pinout (AT3483E/AT3485/AT3486)

    Current-Limiting and Thermal Shutdown for Driver Overload Protection

Applications

    Low-Power RS-485/RS-422 Transceivers Telecommunications

    Transceivers for EMI-Sensitive Applications Industrial-Control Local Area Networks

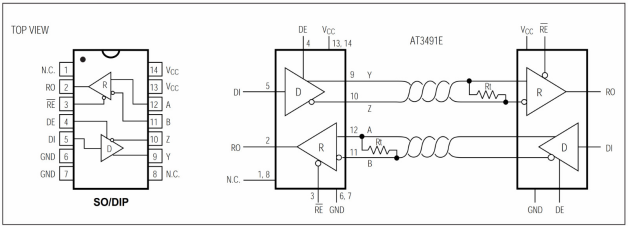

Typical Operating Circuit
